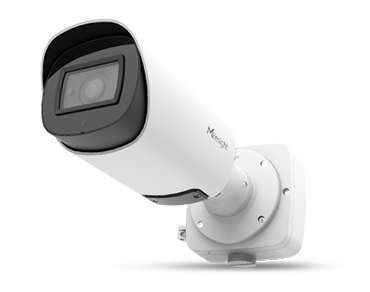

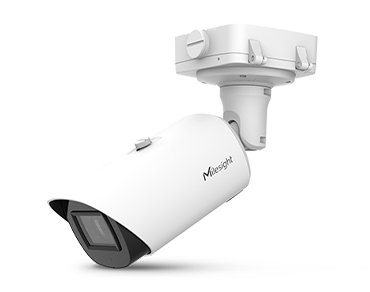

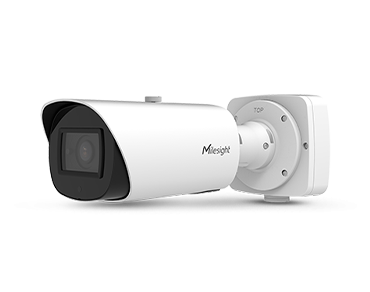

AI Outdoor Parking Management Pro Bullet Plus Camera

1 Camera, 2 Parking Detection Modes

Cámara para exteriores Pro Plus Bala

1 Camera, 2 Parking Detection Modes

Occupancy Detection (Up to 100 Parking Spaces)
Parking Detection with LPR (Up to 4 Parking Spaces)
Intelligent AI-powered LPR Algorithm
98%+ Recognition Rate
3rd Party Compatibility
4K & 1/1.8'' Starlight Sensor
65m IR Distance
IP67 & IK10 Full Protection

Smart Eyes on Your Parking Lot

Introduction

Occupancy Detection

Parking Detection with LPR

Non-NDAA

MS-C2872-R(T)F(I)PE MS-C2972-R(T)F(I)PE

NDAA

MS-C2872-TF(I)PC MS-C2972-R(T)F(I)PC

MS-C2872-R(T)F(I)PE

Camera

Name	Entrance & Exit AI LPR Bullet Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR	140dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB

Lens

Name	Motorized 2.7~13.5mm@F1.4
Field of View	H111°~H34°/D130°~D39°/V60°~V19°
Mount	Φ14
Focus Control	Auto/Manual

Entrance & Exit Management

Max. Vehicle Speed	200km/h
Recognition Accuracy	>98%
Coverage	2 lanes
Country/Region Supported	More than 80 countries and regions
Illumination Distance	Up to 25m during the day; Up to 20m during the night with illumination
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function	Evidence Camera Linkage
White/Black List	Up to 20000 records inside the camera
LPR Smart Search	Support

INTERFACE

Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1

VIDEO

Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness

NETWORK

Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support

SYSTEM

System Compatibility	API, HTTP, TCP, ONVIF Profile G & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc

GENERAL

Working Temperature	-40℃∼60℃
Working Humidity	0∼95%(Non-condensing)
Power Supply	PoE (802.3af) / DC 12V±10%
Power Consumption	6W MAX, 10W MAX(With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	825g
Dimensions	Φ76mmX239.5mm
Warranty	3/5 Years
