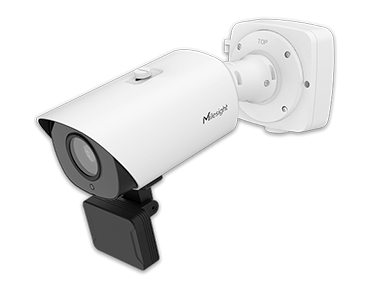

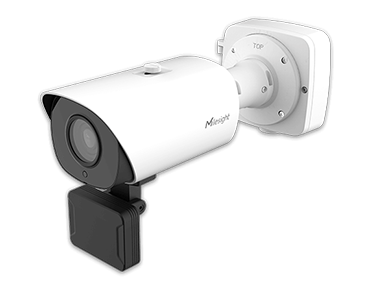

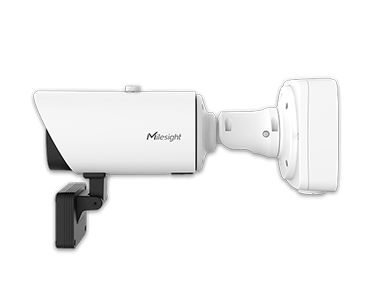

AI Road Traffic Radar Pro Bullet Plus Camera

Integrate 3D Radar, AI and LPR into One

Cámara AI Pro Plus Bala con Radar

Integrate 3D Radar, AI and LPR into One

Traffic Violation
Detection Integrated 3D Radar
Intelligent AI-powered LPR Algorithm
200km/h Recognizable Detection
4 Lanes Monitoring at Once
4X/12X AF Lens 1/2'' Sensor & 0.002Lux Starlight
90fps High Frame Rate

3D Radar Real-time Speed Detection for Safer Road

Introduction Video

Demo Video

Installation & Configuration Tutorial

Non-NDAA

MS-C2872-R(T)F(I)PE MS-C2972-R(T)F(I)PE

NDAA

MS-C2872-TF(I)PC MS-C2972-R(T)F(I)PC

MS-C2872-R(T)F(I)PE

Camera

Name	Entrance & Exit AI LPR Bullet Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR	140dB Super WDR
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB

Lens

Name	Motorized 2.7~13.5mm@F1.4
Field of View	H111°~H34°/D130°~D39°/V60°~V19°
Mount	Φ14
Focus Control	Auto/Manual

Entrance & Exit Management

Max. Vehicle Speed	200km/h
Recognition Accuracy	>98%
Coverage	2 lanes
Country/Region Supported	More than 80 countries and regions
Illumination Distance	Up to 25m during the day; Up to 20m during the night with illumination
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic Function	Evidence Camera Linkage
White/Black List	Up to 20000 records inside the camera
LPR Smart Search	Support

INTERFACE

Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1

VIDEO

Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness

NETWORK

Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support

SYSTEM

System Compatibility	API, HTTP, TCP, ONVIF Profile G & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc

GENERAL

Working Temperature	-40℃∼60℃
Working Humidity	0∼95%(Non-condensing)
Power Supply	PoE (802.3af) / DC 12V±10%
Power Consumption	6W MAX, 10W MAX(With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	825g
Dimensions	Φ76mmX239.5mm
Warranty	3/5 Years
