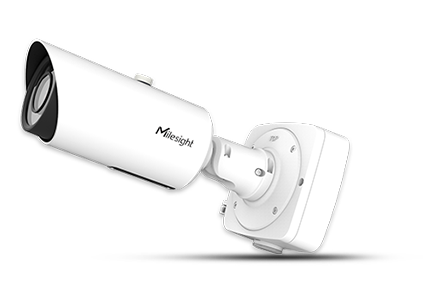

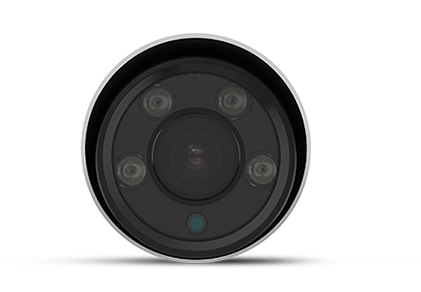

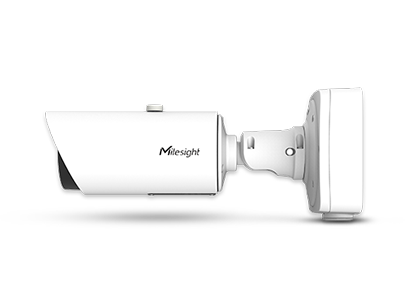

AI Motorized Pro Bullet Network Camera

Intelligent and Endurable for the Most Severe Conditions

Cámara AI Bala Pro Motorizada

Intelligent and Endurable for the Most Severe Conditions

AI Empowered VCA
100m IR Distance
140dB Super WDR & 0.005Lux Low-light
90fps High Frame Rate
PTFE Membrane
Audio I/O, Alarm I/O, PoE & DC 12V

  Go Beyond Security with Pro Cameras

Product Lineup





MS-C2962-R(T)F(I)PE

Camera

Name AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens Motorized 3.6~10mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm)
H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m)
H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
Focus Control Auto/Manual
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm)
Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX
8W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C5362-F(I)PE

Camera

Name AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.4 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm)
H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm)
H37°~H15°/D47°~D19° /V28°~V11° (7~22mm)
Focus Control Auto/Manual
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm)
Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 5W MAX
7W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8162-F(I)PE

Camera

Name AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux@F1.4 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 2.7~13.5mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H96°~H33°/ D112°~D37°/ V53°~V18°
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
9W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2862-(R)TF(I)PA

Camera

Name 2MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 650m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H96°~H42°/D111°~D48°/V55°~V23°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 10W MAX 13W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2962-R(T)F(I)PA

Camera

Name 2MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm @F1.4, P-Iris(Optional)
Mount Φ14
Field of View H92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX, 10W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2962-R(T)F(I)PA

Camera

Name 5MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX, 11W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2962-R(T)F(I)PA

Camera

Name 4K AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H96°~H33°/D112°~D37°/V53°~V18°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 10W MAX, 11W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8262-F(I)PA

Camera

Name 4K AI Motorized Pro Bullet Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H110°~H46°/D126°~D54°/ V61°~V25°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 10W MAX, 12W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2862-TF(I)PC

Camera

Name 2MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H96°~H42°/D111°~D48°/V55°~V23°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX, 13W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2962-R(T)F(I)PC

Camera

Name 2MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm); Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX, 13W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C5362-F(I)PC

Camera

Name 5MP AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m(3.0~10.5mm/2.7~13.5mm); Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX, 13W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C5362-F(I)PC

Camera

Name 4K AI Motorized Pro Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H96°~H33°/D112°~D37°/V53°~V18°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 10W MAX, 13W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8262-F(I)PC

Camera

Name 4K AI Motorized Pro Bullet Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 60m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H110°~H46°/D126°~D54°/V61°~V25°
Focus Control Auto/Manual
Iris Control Auto/Manual

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 11W MAX, 13W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance
Weight 1080g
Dimensions 134mmX126mmX285mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series




Milesight

Contact Icon

Contáctenos






×
