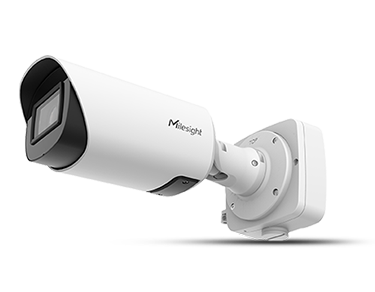

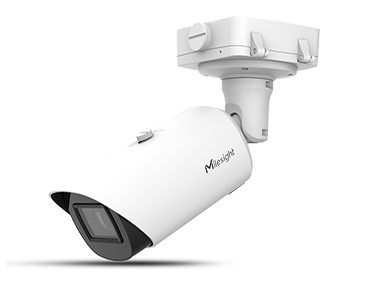

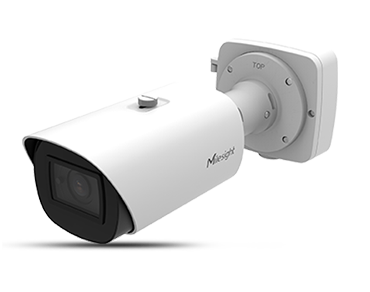

AI Motorized Pro Bullet Plus Network Camera

Experience the All-round and Powerful Functions

Cámara AI Bala Pro Plus Motorizada

Experience the All-round and Powerful Functions

AI Deep Learning
1/1.8" STARVIS Starlight Sensor
100m IR Distance
140dB Super WDR & 0.002Lux Ultra Low-light
90fps High Frame Rate
4K Viewing Experience
Robust Performance with IP67 & IK10
Audio I/O, Alarm I/O, PoE & DC 12V

  Milesight Camera Lineup & Hardware Composition

Product Lineup





MS-C2866-R(T)F(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux@F1.4 B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens Motorized 3.6~10mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H100°~H45°/ D116°~D51°/ V57°~V25°
Focus Control Auto/Manual
Shutter Time 1/100000s∼1s
IR Distance Up to 650m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX (With IR on)
8W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2966-R(T)F(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm)
H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm)
H45°~H17°/D53°~D20° /V25°~V9° (7~22mm)
Shutter Time 1/100000s∼1s
IR Distance Up to 650m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX
8W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C4466-RF(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux@F1.4 B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens Motorized 3.6~10mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm)
H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm)
H45°~H17°/D53°~D20° /V25°~V9° (7~22mm)
Shutter Time 1/100000s∼1s
IR Distance Up to 650m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 2688x1520
Primary Stream 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX
8W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C4466-RF(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.4 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D138°~D42° /V83°~V25° (2.7~13.5mm)
H94°~H33°/ D116°~D42° / V71°~V25°(3.0~10.5mm)
H42°~H16°/D53°~D20° /V32°~V12° (7~22mm)
Shutter Time 1/100000s∼1s
IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 660Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX
8W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8166-F(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux@F1.4 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 2.7~13.5mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H110°~H33°/D118°~D38°/V60°~V18°
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX
9W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8166-F(I)PE

Camera

Name AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.4 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 3.6~10mm@F1.4
P-Iris(Optional)
Mount Φ14
Field of View H110°~H33°/D118°~D38°/V60°~V18°
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX
8W Max (With Heater on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2866-(R)TF(I)PA

Camera

Name 2MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 650m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H100°~H45°/ D116°~D51°/ V57°~V25°
Focus Control Auto/Manual
Iris Control Auto

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX
14W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2966-R(T)F(I)PA

Camera

Name 2MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm), up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm)
H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm)
H45°~H17°/D53°~D20° /V25°~V9° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6.5W MAX, 13.5W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C5366-F(I)PA

Camera

Name 5MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm), up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm)
H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm)
H45°~H17°/D53°~D20° /V25°~V9° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6.5W MAX, 13.5W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8166-F(I)PA

Camera

Name 4K AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H110°~H33°/D118°~D38°/V60°~V18°
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 6W MAX, 13W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8266-F(I)PA

Camera

Name 4K AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H116°~H48°/D134°~D55°/V65°~V27°
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX, 16W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2866-TF(I)PC

Camera

Name 2MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H100°~H45°/ D116°~D51°/ V57°~V25°
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX, 15W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C2866-TF(I)PC

Camera

Name 2MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm)
H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm)
H45°~H17°/D53°~D20° /V25°~V9° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX 16W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C5366-F(I)PC

Camera

Name 5MP AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H113°~H33°/D138°~D42° /V83°~V25° (2.7~13.5mm)
H94°~H33°/ D116°~D42° / V71°~V25°(3.0~10.5mm)
H42°~H16°/D53°~D20° /V32°~V12° (7~22mm)
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX 16W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8166-F(I)PC

Camera

Name 4K AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H110°~H33°/D118°~D38°/V60°~V18°
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX, 17W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series

MS-C8266-F(I)PC

Camera

Name 4K AI Motorized Pro Bullet Plus Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 65m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens Motorized 3.6~10mm@F1.4, P-Iris(Optional)
Mount Φ14
Field of View H110°~H33°/D118°~D38°/V60°~V18°
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX, 17W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series




Milesight

Contact Icon

Contáctenos






×
