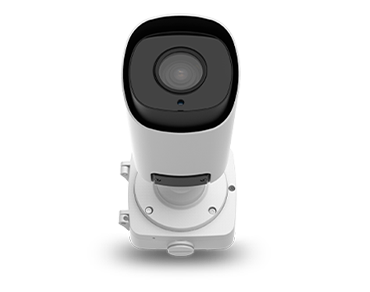

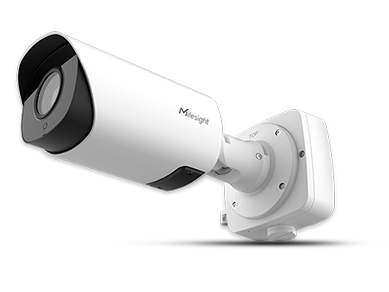

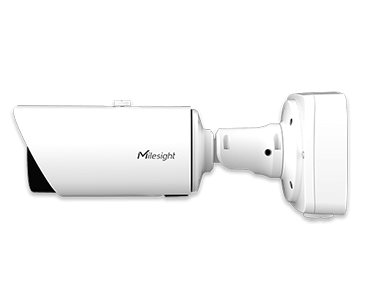

AI 4X/12X Pro Bullet Plus Network Camera

Experience the All-round and Powerful Functions

Cámara AI 4X / 12X Bala Pro Plus

Experience the All-round and Powerful Functions

AI Deep Learning
4X/12X Optical Zoom
140dB Super WDR & 0.002Lux Ultra Low-light
90fps High Frame Rate
180m IR Distance
4K Viewing Experience
Robust Performance with IP67 & IK10
Audio I/O, Alarm I/O, PoE & DC 12V

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

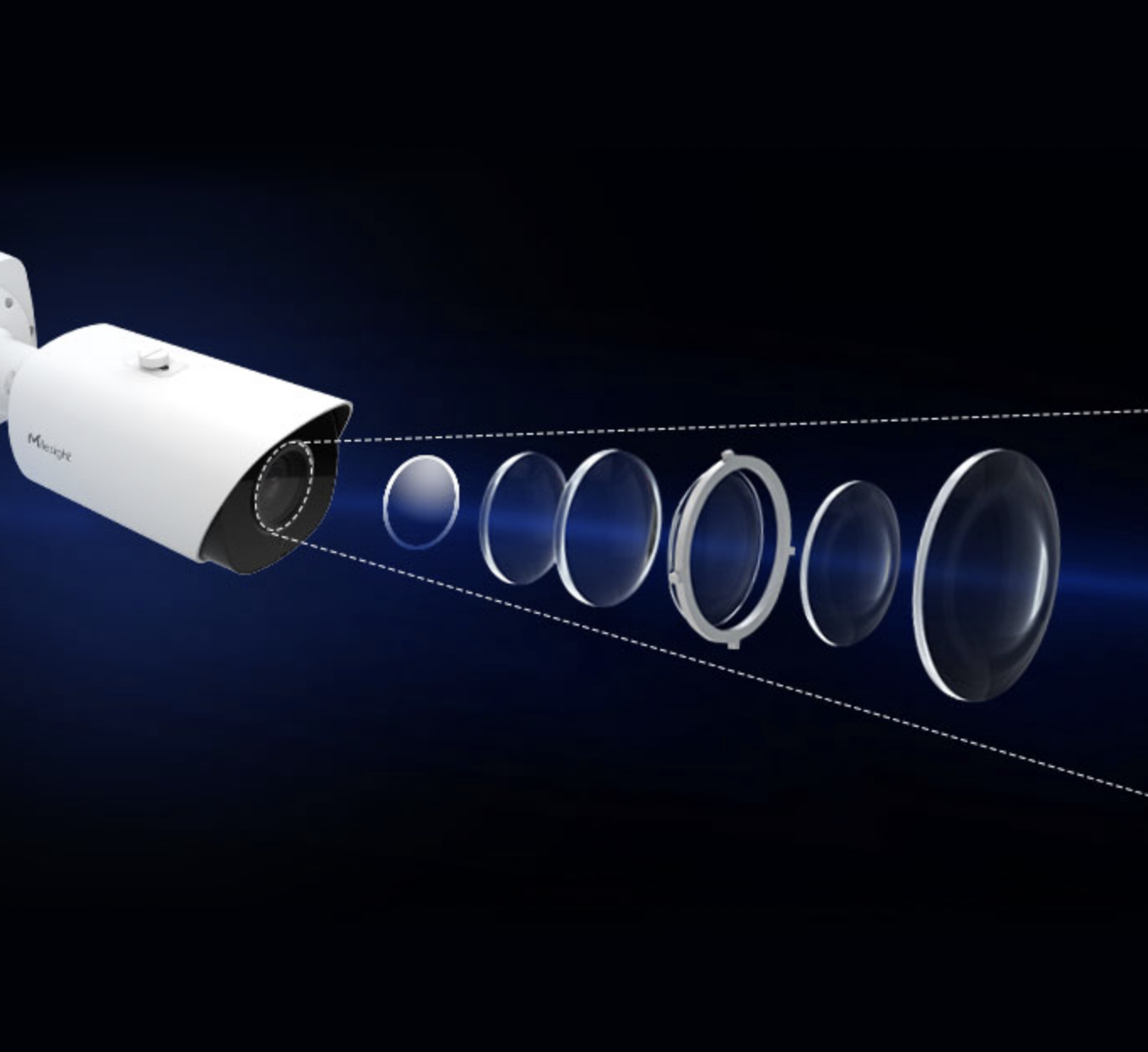

4X/12X
Optical Zoom
The 4X/12X Optical Zoom can zoom in to distant objects while still maintaining the clarity, delivering high quality video over the entire image

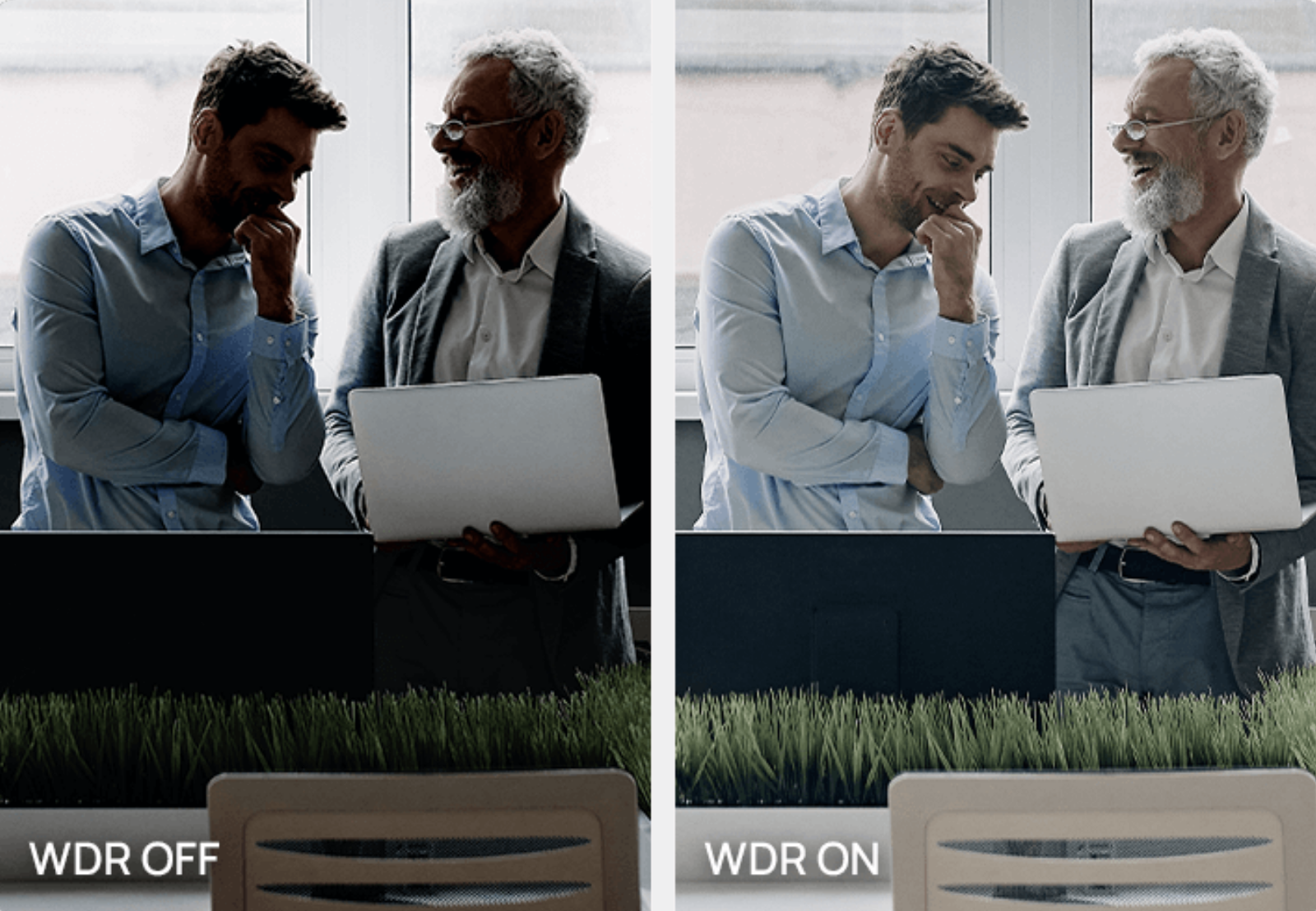

140dB
Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.




MS-C2866-X4R(T)PE

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2966-X12R(T)PE

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C4466-X4RPE

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 2688x1520
Primary Stream 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C5366-X12PE

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1447g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C8266-X4PE

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼95%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 9W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2866-X4R(T)PA

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2966-X12R(T)PA

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 7W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1447g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2966-X12R(T)PA

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C5366-X12PA

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1447g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C5366-X12PA

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C2966-X12R(T)PC

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1447g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C5366-X12PC

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom
Mount Φ14
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Manual
Aperture F1.6~F2.8
Iris Control Auto

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1447g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series

MS-C5366-X12PC

Camera

Name AI 4X/12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
IR Distance Up to 180m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB

Lens

Lens 8~32mm, 4X Optical Zoom
Mount Φ14
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
60℃~60℃(Optional for Heater Version)
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption 8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection 4KV
Weight 1445.8g
Dimensions 320mmX134mmX126mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - A-Series




Milesight

Contact Icon

Contáctenos






×
