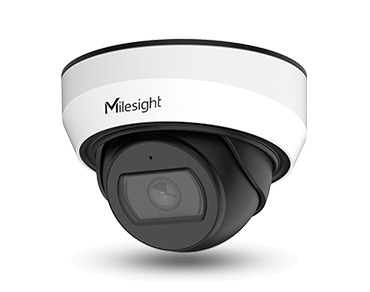

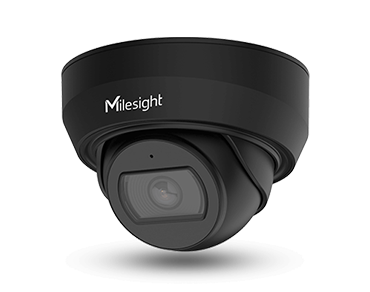

AI Weather-proof Mini Dome Network Camera

Smart Weather-proof Camera

Cámara AI Mini Domo Resistente a la Intemperie

Smart Weather-proof Camera

2/5/8MP
AI Deep Learning
0.005Lux Ultra Low-light
Smart IR II with 25m IR Distance
60fps High Frame Rate
IP67 & IK10
Integrated Junction Box (Optional)

  Reliable, Durable, and Always on Guard

Introduction

Product Lineup

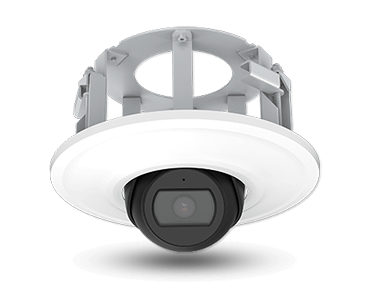

Installation





MS-C2973-(R)PD

Camera

Name 2MP AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Field of View H111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/32°(6mm)
Mount M12
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3W MAX, 5.1W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
S- 20fps@4k Series
P - PoE Supported
C/D - A-Series

MS-C5375-PD

Camera

Name 5MP AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3.8W MAX, 5.8W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
S- 20fps@4k Series
P - PoE Supported
C/D - A-Series

MS-C8175-(S)PD

Camera

Name 4K AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 4.6W MAX, 6.6W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
S- 20fps@4k Series
P - PoE Supported
C/D - A-Series

MS-C2975-RPC

Camera

Name 2MP AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H111°/D128°/V61°(2.8mm), H91°/D106°/V50°(4mm), H55°/D63°/32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 5W MAX, 6W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
S- 20fps@4k Series
P - PoE Supported
C/D - A-Series

MS-C5375-PC

Camera

Name 5MP AI Weather-proof Mini Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm/ 4mm/ 6mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 25m
S/N >55dB

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 5W MAX, 7W MAX (With IR on)
Housing Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance
Weight 600g(Junction Box Version) / 410g(Cable Out Version)
Dimensions Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version)
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
S- 20fps@4k Series
P - PoE Supported
C/D - A-Series




Milesight

Contact Icon

Contáctenos






×
