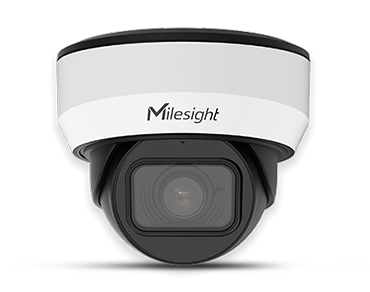

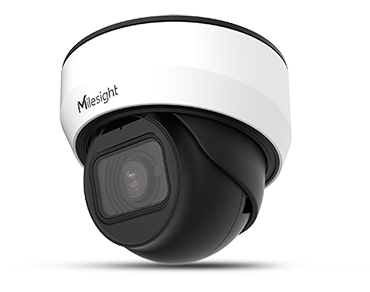

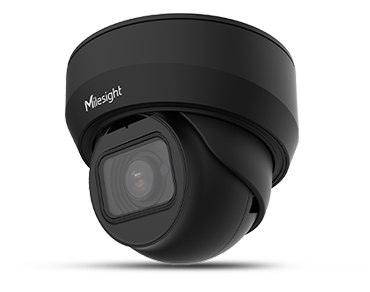

AI Motorized Dome. Network Camera

Intelligent and Robust for Mission-critical Applications

Cámara AI Domo Motorizada

Intelligent and Robust for Mission-critical Applications
2/5/8MP
AI Deep Learning
0.005Lux Ultra Low-light
Smart IR II with 50m IR Distance
Motorized Zoom Lens
P-Iris Control
IP67 & IK10
Versatile Interfaces (Optional)


  Compact Size, Stylish Design and Easy Installation

Product Lineup

Introduction


Non-NDAA

MS-C2975-R(T)F(I)PC MS-C5375-F(I)PC MS-C8175-F(I)PC

NDAA

MS-C2975-(R)FPD MS-C5375-FPD MS-C8175-(S)FPD



MS-C2975-R(T)F(I)PC

Camera

Name 2MP AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Field of View H111°~H34°/D130°~D39°/ V60°~V19°(2.7~13.5mm)
H100°~H33°/D115°~D38°/ V54°~V18°(3.0~10.5mm)
H42°~H17°/D48°~D19°/ V24°~V9°(7~22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 8W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series

MS-C5375-F(I)PC

Camera

Name 5MP AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Field of View H99°~H31°/D124°~D38°/ V72°~V23°(2.7~13.5mm
H89°~H31°/D111°~D38°/ V66°~V23°(3.0~10.5mm)
H37°~H15°/D46°~D19°/ V28°~V11°(7~22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual

VIDEO

Max. Image Resolution 2592x194
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 7W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series

MS-C8175-F(I)PC

Camera

Name 4K AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Field of View H107°~H33°/D125°~D37° /V58°~V18°
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed
Face detection Detect and capture faces, get real-time snapshots
People Counting & Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 8W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series

MS-C2975-(R)FPD

Camera

Name 2MP NDAA AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7∼13.5mm/7∼22mm @F1.4
Field of View H97°~H31°/D113°~D36°/V53°~V18°(2.7~13.5mm)
H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) -

VIDEO

Max. Image Resolution 1920x1080
Primary Stream 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 5.2W MAX
6.4W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series

MS-C5375-FPD

Camera

Name 5MP NDAA AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7∼13.5mm/7∼22mm @F1.4
Field of View H94°~H31°/D120°~D38°/V68°~V23°(2.7∼13.5mm)
H37°∼H15°/D46°∼D19°/V28°∼V11°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) -

VIDEO

Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 5.5W MAX
6.5W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series

MS-C8175-(S)FPD

Camera

Name 4K NDAA AI Motorized Dome Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB

LENS

Lens Motorized 2.7∼13.5mm @F1.4
Field of View H110°~H29°/D129°~D33°/V59°~V16°
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) -

VIDEO

Max. Image Resolution 3840x2160
Primary Stream 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps(3840x2160)(Optional for S Series)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)

NETWORK

Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support

INTELLIGENT ANALYTICS

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper
Detection, Line Crossing, Loitering, Object Left, Object Removed

SYSTEM

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 7.4W MAX
8.4W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight 780g
Dimensions Φ130mmX115mm
Warranty 3/5 Years
Naming Convention
R - High Frame Rate (60fps)
T- High Frame Rate (100fps)
F - Motorized Vari-focal Lens
I- Pris Supported (Optional)
P - PoE Supported
C/D - A-Series
logo
Teléfono: 55•5259•1355

E-mail: soporte@milesight.mx



Mapa del Sitio


Milesight

Con más de 12 años en el mercado Milesight ofrece productos de videovigilancia IP y software para gestión de video, con alta calidad en materiales de fabricación, y analíticos de última generación para diferentes aplicaciones. Nuestras líneas de producto están orientadas a cubrir necesidades específicas de seguridad en diferentes sectores sin importar el tamaño del proyecto. Con el mejor soporte del mercado y un entorno responsable de comercialización, Milesight se convierte en una alternativa rentable, confiable y muy flexible para sus proyectos de videovigilancia.

Contact Icon

Contáctenos






×
