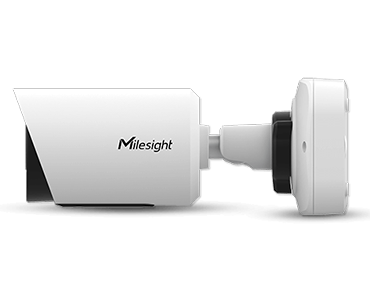

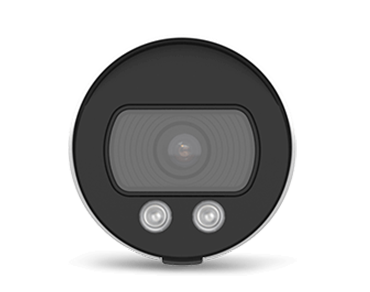

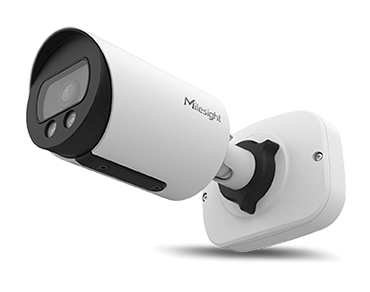

AI Color + Vandal-proof Mini Bullet Network Camera

Awaken Color to Hit the True World

Cámara AI Mini Bala Antivandálica Resistente a la Intemperie

Awaken Color to Hit the True World

Full-color Image Performance
Up to 4K Video Viewing Experience
Amazing Image Effect with F1.0 Aperture
Industry-leading 0.001Lux Ultra Low-light
AI Empowered VCA
Up to 30m Illuminator Distance with Smart On/Off Control

Color Matters, Lighten up the World Now!

Performance Demo

Unboxing Video

Non-NDAA

MS-C2872-R(T)F(I)PE MS-C2972-R(T)F(I)PE MS-C4472-RF(I)PE MS-C5372-F(I)PE MS-C8172-F(I)PE MS-C8272-F(I)PE MS-C2872-R(T)F(I)PA MS-C2972-R(T)F(I)PA MS-C5372-F(I)PA MS-C8172-F(I)PA MS-C8272-F(I)PA MS-C2972-FPD

NDAA

MS-C2872-TF(I)PC MS-C2972-R(T)F(I)PC MS-C5372-F(I)PC MS-C8172-F(I)PC MS-C8272-F(I)PC

MS-C2872-R(T)F(I)PE

Camera

Name	AI Motorized Pro Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.4 B/W: 0Lux with IR on
WDR	140dB Super WDR
Lens	Motorized 3.6~10mm@F1.4 P-Iris(Optional)
Mount	Φ14
Field of View	H92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm) H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m) H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
Focus Control	Auto/Manual
Shutter Time	1/100000s∼1s
IR Distance	Up to 60m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm)
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB

VIDEO

Max. Image Resolution	1920x1080
Primary Stream	60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness

INTERFACE

Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm I/O	1/1

NETWORK

Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

AUDIO

Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support

INTELLIGENT ANALYTICS

Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap, Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting

SYSTEM

Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility	ONVIF Profile G & Q & S & T, API

GENERAL

Working Temperature	-40℃∼60℃ 60℃~60℃(Optional for Heater Version)
Working Humidity	0∼95%(Non-condensing)
Power Supply	PoE (802.3af) / DC 12V±10%
Power Consumption	7W MAX 8W MAX(With IR on)
Housing	Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Surge Protection	4KV
Weight	1080g
Dimensions	134mmX126mmX285mm
Warranty	3/5 Years
